Materials management with vending machines

Maximum security for your materials management

Consumables such as personal protective equipment, tools or machines with irregular, unpredictable requirements play a significant role in your company's cost and efficiency balance sheet. It is not so much the cost of the materials that matter, but rather their procurement or a shortage of operating supplies that cost you and your employees a lot of time and money.

In addition to our system solutions for production material, Würth offers a holistic, modular concept for auxiliary and operating materials. With the vending machines, we take care of the delivery, storage and stocking up to the fully automatic replenishment of your auxiliary and operating materials. All processes are transparent and completely traceable. Due to the existing authorisation concept, the withdrawal permissions can be assigned individually per user. This prevents unwanted withdrawals. Furthermore, you profit from the advantage that your auxiliary and operating materials are available 24 hours a day. As a result, you are no longer dependent on the opening hours of your material issue department.
The application is very simple: simply login, remove the product and the system automatically triggers the reordering.

Your superhero for materials management

Operating materials get out of hand? Procurement and logistics steal time and nerves? Materials management simply costs too much energy?

This looks like a job for ORSY^®mat

Individual vending systems for auxiliary and operating materials

In order to meet the different requirements, our vending machine models are available in a multitude of variants and offer a maximum of flexibility. Together with you, we develop your individual vending machine tailored to your work situation and your product range. The installation only requires a power connection. The communication with our merchandise management system runs via the mobile network.

If there is a need to use several vending machines, the different variants of ORSY^®mat FP, ORSY^®mat HX, ORSY^®mat RT and ORSY^®mat DR can be connected. One single vending machine then controls the entire vending machine group. Therefore, only one central registration is required to remove items from the different systems.

ORSY®mat FP

Flap based vending machine

The flap based vending machine is a real all-rounder and enables the storage and provision of various articles and consumables.

The ORSY^®mat FP is available in ten variants with up to 72 flaps. Due to the different flap sizes, this vending machine type is suitable for very large items such as protective helmets or work shoes.

In addition, the ORSY^®mat FP is used for transparent returnable handling, e.g. by securely storing, dispensing and re-stocking machines after use.

ORSY®mat HX

Helix based vending machine

Our helix based vending machine can be individually assembled according to your requirements with regard to assortment variety, item size and quantity.

One ORSY^®mat HX machine offers space for up to 48 different products and 1,000 units.

This vending machine model is particularly suitable for the individual removal of auxiliary and operating materials as well as industrial safety articles. The machine recognises the removal of the last item of a packaging unit and then triggers its automatic re-ordering.

ORSY®mat RT

Rotation system for various items

The ORSY^®mat RT is particularly suitable for manufacturing companies that require a large number of different small to medium-sized auxiliary and operating equipment.

It offers 8 to 48 compartments per level and can therefore be used to supply up to 384 different items.

The compartments store the items securely, allowing the machine to be filled with single items regardless of the packaging unit.

ORSY®mat DR

Drawer based vending machine

The drawer-based vending machine is particularly suitable for storing, stocking and dispensing high-quality or particularly sensitive items, such as tools, maintenance materials, measuring and testing equipment.

Combined with the concept of individual removal authorization, the system offers a simple, efficient solution for automated, secure material dispensing.

New vending machine technologies. New applications.

The ORSY^®mat WGT and ORSY^®mat CHE vending machines are self-contained systems that operate independently from the vending machines listed above.

ORSY®mat WGT – Weighing system

The ORSY®mat WGT recognises withdrawal of an item on the basis of the integrated load cells, which store the weight of the deposited item. This technology allows you to withdraw individual items independent of the packaging unit. In addition, it is possible to withdraw several items from the machine at the same time - as is the case with an ordinary material cabinet. As soon as the machine is closed after removal, it automatically takes stock of the items.

Due to load cells in different sizes, the system is suitable for managing almost all types of auxiliary and operating materials. Even large-volume items such as protective suits, leather gloves or large grinding wheels can be optimally stored in the ORSY®mat WGT. One vending machine can store maximum 80 different items.

If several vending machines with weighing systems are used, they are networked with each other. In this case, one dispensing system is used for control, which means that all existing units can be accessed with a single login.

ORSY®mat CHE - hazardous material system

ORSY®mat CHE – The hazardous substance system

Chemical-technical products such as brake cleaners, lubricants or corrosion protection sprays are essential in production, maiLike the other ORSY®mat models, the system also recognises item withdrawals and automatically triggers re-orders if necessary.a central hazardous material warehouse. This costs you a lot of time and money.

The hazardous materials system ORSY®mat CHE is used for the safe, legally compliant and clear storage of hazardous materials. Like the other ORSY®mat models, the system also recognises item withdrawals and automatically triggers re-orders if necessary.. This means you can also rely on a secure supply of chemical-technical products.

The ORSY®mat CHE is available in two sizes and is suitable for both cans and canisters. The number of levels is variable so that the storage space is optimally used.

	Advantages of the dispenser at a glance
Supply security through automated re-ordering
24-hour availability
Reduction of shrinkage through access protection
Process cost savings (taking over the determination of requirements, notification of requirements, reordering, delivery of goods and system filling – if required)
Complete transparency of all processes, withdrawals and orders
Adaptation to your individual range of articles through modular design
Simple connection and integration into the material supply system
Optimal use of storage space
Simple integration into the existing material supply system
Safe and needs-based storage
Cost center assignment

Dispenser for cables, wires, strands etc.

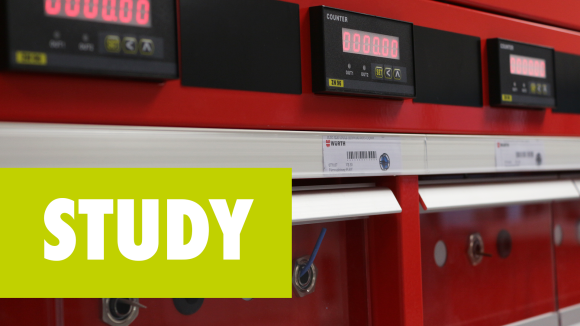

Current study: ORSY^®mat CBL automatic cable machine

The current study of the cable dispenser is about an automated supply concept for the specific product group of cables, wires, strands and installation material. Like all ORSY^®mat models, the ORSY^®mat CBL handles the entire procurement and logistics process - from delivery, storage and stockpiling to fully automated replenishment.

The automatic cable dispenser is based on a length measuring system and is suitable for dispensing products on reels and in cardboard boxes with millimetre accuracy. The product output is possible with a diameter of 3mm to 16mm and a width of 100mm to 500mm.

MRO: Our range of auxiliary and operating materials

Occupational safety. With certainty.

Our product range includes a wide range of high-quality occupational safety articles and offers the right product for every application. We are a TÜV-certified PPA expert and support you with our specialists in the segment CPS^®SAFETY. Our automatic dispensers are the ideal solution for the secure supply of occupational safety products.

Chemical-technical products

From adhesives and cleaning agents to lubricants. We offer you an extensive range of chemical-technical products for the use in different industries and support you with our product experts. The ORSY^®mat CHE takes care of safe storage and automatic re-ordering allowing you to concentrate fully on the product application.

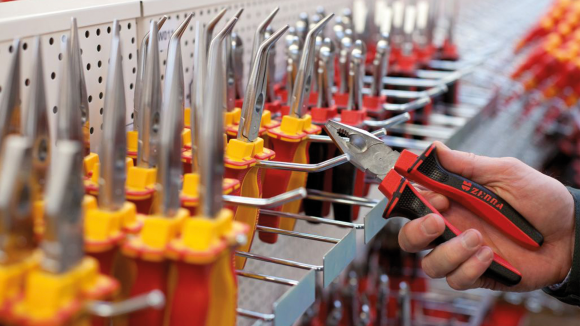

Tools in vending machines

A missing tool can stop the whole operation. Our automatic dispensers ensure that this does not happen by reordering the articles automatically and storing them safely and clearly.

In addition to a variety of hand tools, our product range also includes tools for material processing as well as machines that can be issued via the returnable packaging function of the ORSY^®mat FP.

Further system solutions for efficient material supply

CPS®KANBAN

Efficient production supply

Our CPS^®Kanban systems are the ideal solution for an automated, efficient supply of production materials.

ORSY®PUSH

Storage and ordering system

ORSY^®PUSH is the perfect addition to existing material management and maintenance solutions.

More about ORSY^®PUSH

ORSY®CRIB

Automated material dispensing

ORSY^®CRIB is the ideal system if you need a variety of consumables.

More about ORSY^®CRIB
