Spring band clamps for hose-socket connections

Spring band clamps

W.TEC®FBS – Spring band clamps for the industry

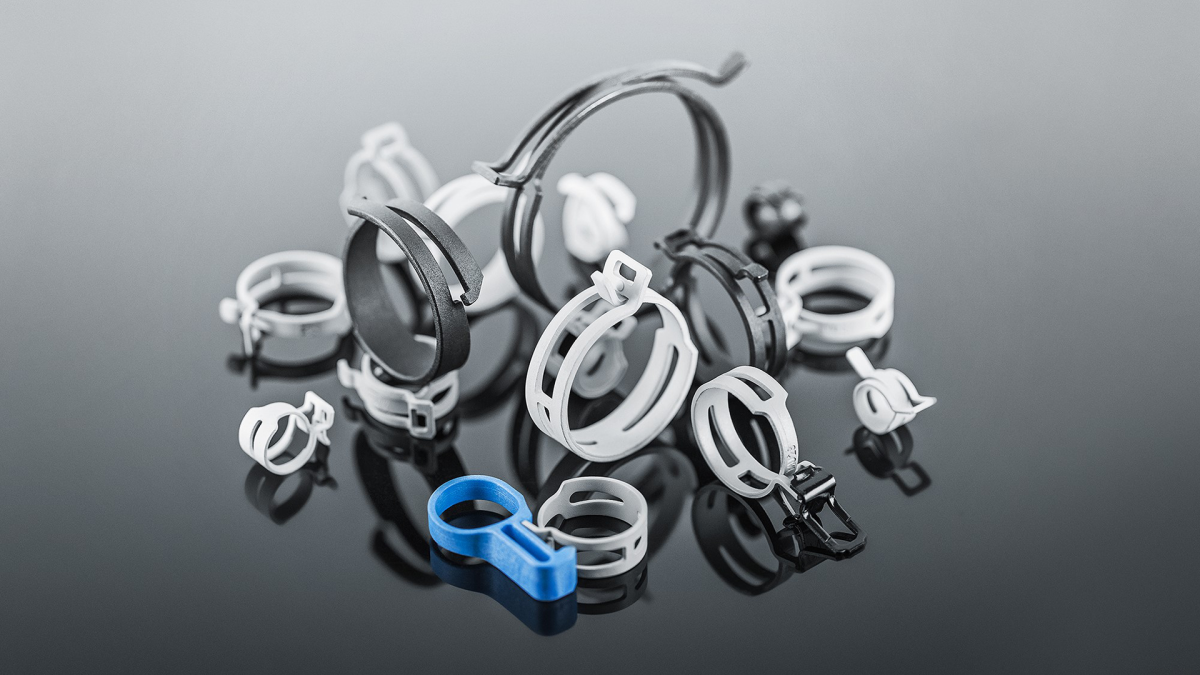

Spring band clamps are self-tightening fasteners that are suitable for hose-socket connections due to their dynamic spring properties. The use of tempered spring band steel gives the parts a very high degree of flexibility and thus they continually adapt to the changing properties of the operating temperatures and the pressure ratios of the hose and the pipe. Once the spring band clip is attached, there is no need to retighten it. With almost constant clamping force, spring band clamps ensure a continuous, leak-free sealing without damaging the hose or connection piece. Due to the large number of different assembly and locking variants, a maximum of possible applications is created.

Spring band clamps are used in particular in the following sectors:

  • fluid systems
  • engine construction
  • hose systems
  • commercial kitchens/Industrial dishwashers
  • industrial air conditioners
  • agricultural machinery
  • floor cleaning machines
  • campers
  • heat pumps
  • heating/air conditioning
  • sanitary (e.g., toilets for ships, trains, aircrafts)
  • food industry (e.g., bakery/coffee machines)
  • solar thermics
  • printing industry
  • white goods
  • construction machinery
  • LPG installations
  • compressors
  • industrial trucks
  • beverage industry (e.g. bottling plants)
Spring band clamps

Advantages of spring band clamps for connecting hoses with nozzles:

  • high flexibility through continuous adaptation to changing characteristics, e.g. temperature fluctuations of the fasteners
  • constant, uniform clamping force
  • easy installation
  • no subsequent tightening necessary
  • high reusability, since spring force is not lost
  • high process reliability due to the leak-free hose-connection

Types of spring band clamps

Spring band clamp standard

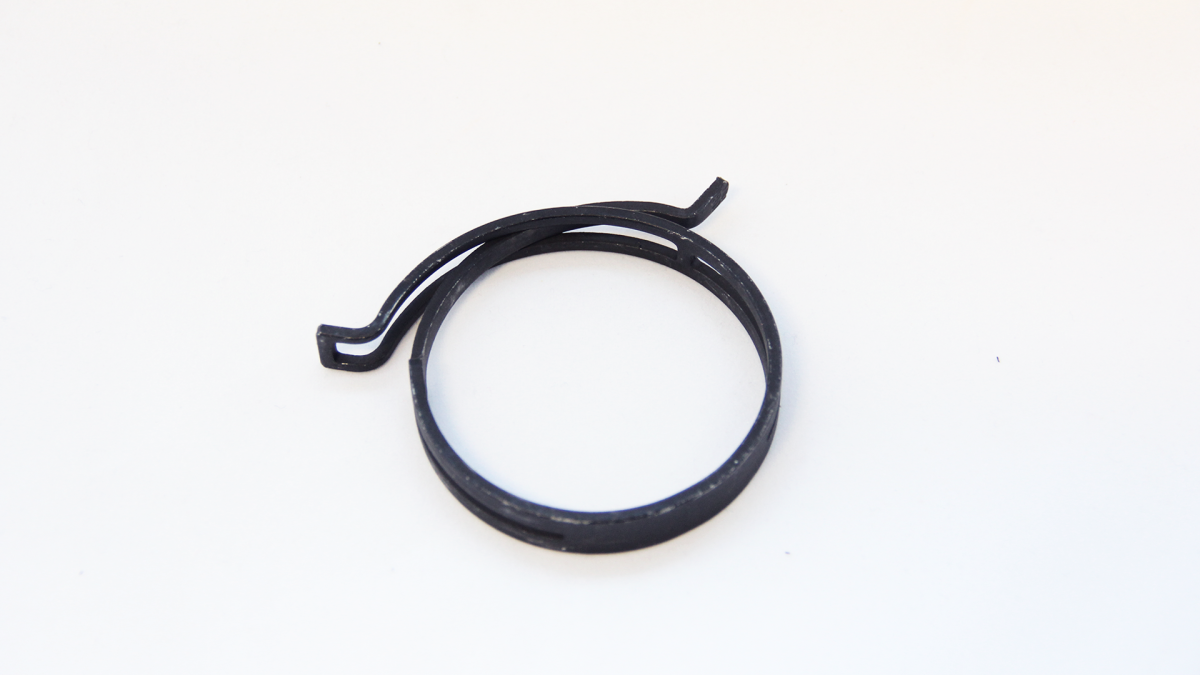

The standard version is the original version of spring band clamps and suitable for applications without space restrictions. This self-tightening fastener offers a nearly constant contact pressure in a wide range of temperatures and pressure conditions. Using tongs the clamp can be assembled and disassembled for safe and effective installation.

> Find it in the online shop

Space-saving spring band clamps

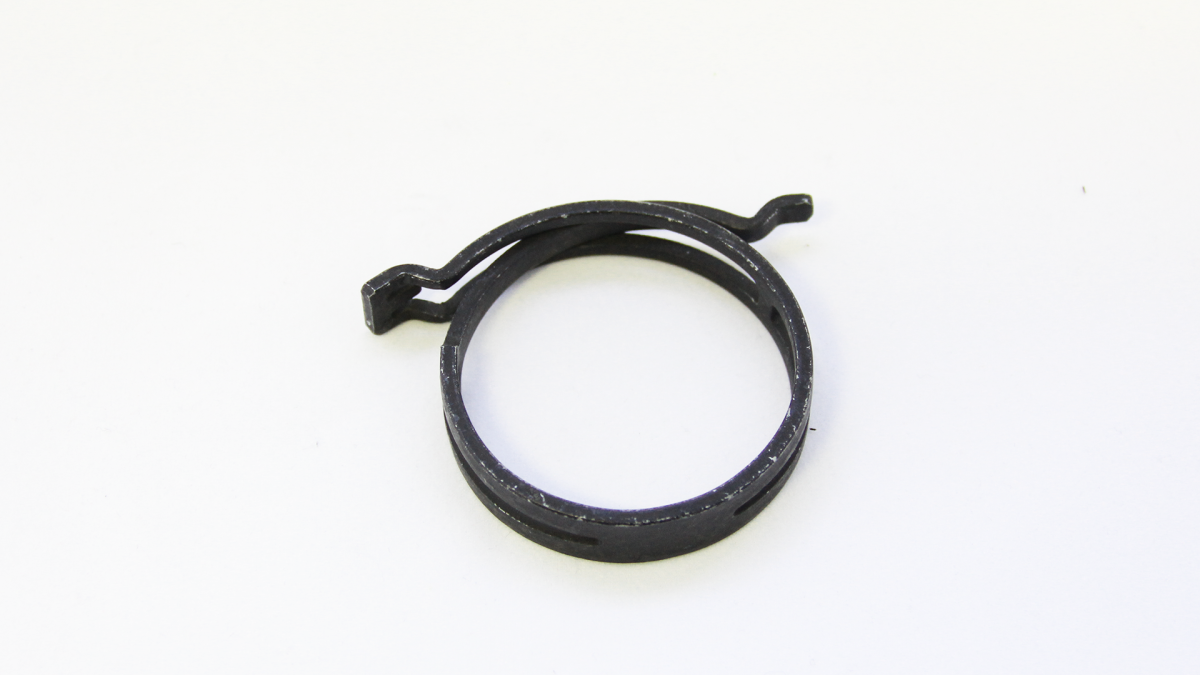

The space-saving version has the same features as the standard spring band clamp. Due to the shortened and flattened mounting ends, the spring band clamp is space-optimized. We recommend the use of hose clamp pliers for the assembly and disassembly.

> Find it in the online shop

Spring band clamp with handyclip

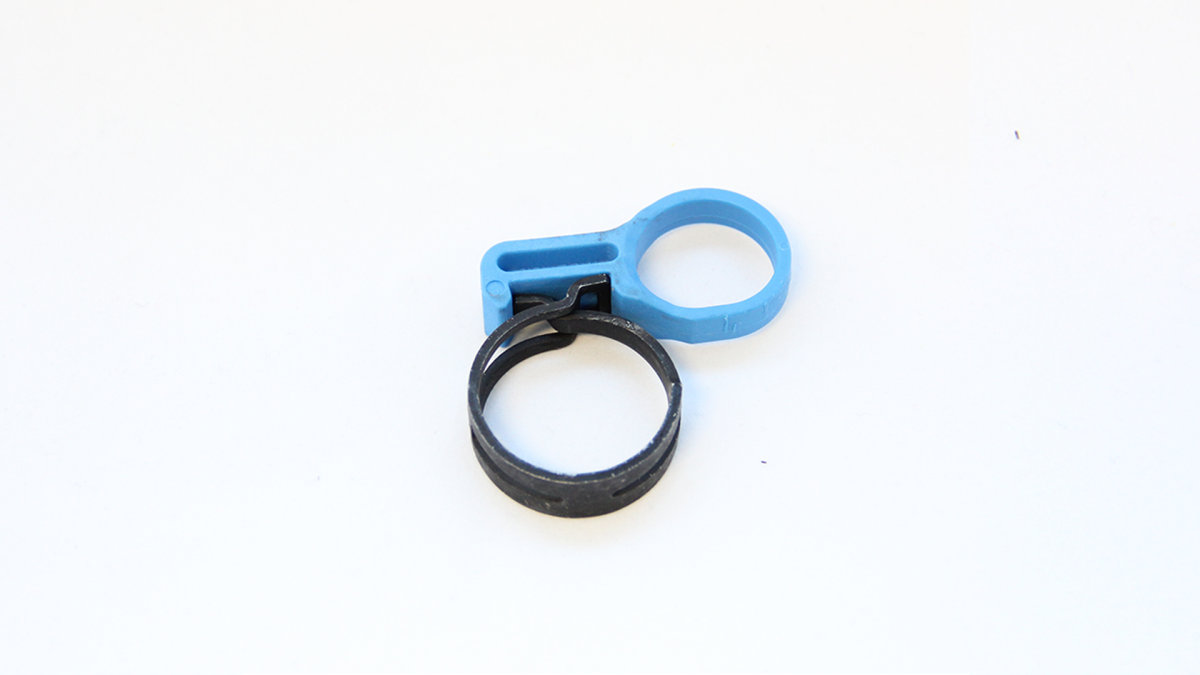

The space-saving spring band clamp is also available as a pre-opened version with a plastic handyclip. Through the use of handyclips, the installation time is considerably reduced, as no tools are needed. For complete assembly, the clip is removed by simply pulling it off. In addition, this clamp is suitable for space limitations.

> Find it in the online shop

Material

  • high-strength, alloyed spring steel 51CrV4
  • high level of protection against brittle fracture, especially at low temperatures

Surface

  • multi-layered & environmentally friendly chrome (VI) -free coating
  • zinc-containing, inorganic basecoat and organic topcoat
  • complies with the regulations of the automobile regulation (RoHS compliant)

Corrosion protection

  • excellent resistance to corrosion, temperature (up to 210 °C) and chemicals
  • guaranteed 720h salt spray resistance according to DIN EN ISO 9227

Available nominal diameter & bandwiths

  • nominal diameter 9.0 mm to 90 mm
  • bandwiths 8.4 mm, 10 mm & 12 mm

Pressure

  • depending on the hose-socket combination, connections of up to a maximum of 11 bar can be fastened

Standardisation

  • DIN 3021 Hose clamps - spring band clamps
  • DIN 3021-1 Dimensions, designation, materials and design
  • DIN 3021-2 Technical delivery conditions
  • DIN 3021-3 System spring band clamp - hose - socket
Hose clamps
Pro Contra
Wide diameter rangeRigid system
Cost-effective production with large diametersHigh maintenance
High hose pulling forcesExpensive (with small diameters)
 Time-consuming and expensive installation tool: torque and closing speed must be controlled
 Risk of injury due to protruding band
Ear hose clamp
ProContra
Corrosion-resistant base materialPossible hose damage
Small clamp widthNot reusable (destructive dismantling)
Low space requirementsSpecial pliers necessary for installation
High hose pulling forcesHigh force required for installation
Cost-effective, very rigid fastenerVery small working range (strongly linked to diameter)
 The force of the clamp depends on the pressing force of the assembly tool (complex controls required)
Spring band clamps
Pro Contra
Highly flexibleLinked to diameter
Simple installation even on hard-to-reach connectionsComparatively high demands on the hose/support system
Very even surface pressure (distribution of radial force)Hose/support/system must be taken into account
Adhesion to the hose possible in pre-opened condition
Protects the hose
Cost-effective
Reusable
